GWM Cannon Dual Cab 2020-2025 Xtreme CapRax Canopy by Rhinoman

GWM Cannon Xtreme CapRax Canopy by Rhinoman (2020–2025 Dual Cab)

When Strength Meets the Outback

The Xtreme CapRax Canopy turns the GWM Cannon into a dust-sealed, load-rated unit ready for punishment. Built from aluminium, shaped for function, and fitted for adaptability, it’s the canopy for Cannon owners who expect their gear to survive Australia’s toughest tracks and job sites.

Armour Without the Weight

At just 78kg, the Xtreme canopy is light enough to keep your payload clear but built tough from 2.5mm automotive-grade aluminium. Internal gussets and corner reinforcement mean it holds its shape under serious strain. And when a similar design was pushed to destruction, it held off until 7.6 tonnes static load crushed it. That’s confidence you can bolt on.

Carry More, Go Further

Rated for 250kg while moving and 500kg when parked, this canopy is more than storage — it’s a platform. Strap down a tent, bolt on racks, stack solar, or throw up a boat loader. Whatever the load, the Xtreme has the numbers to back it up.

Smart Access. Cleaner Air.

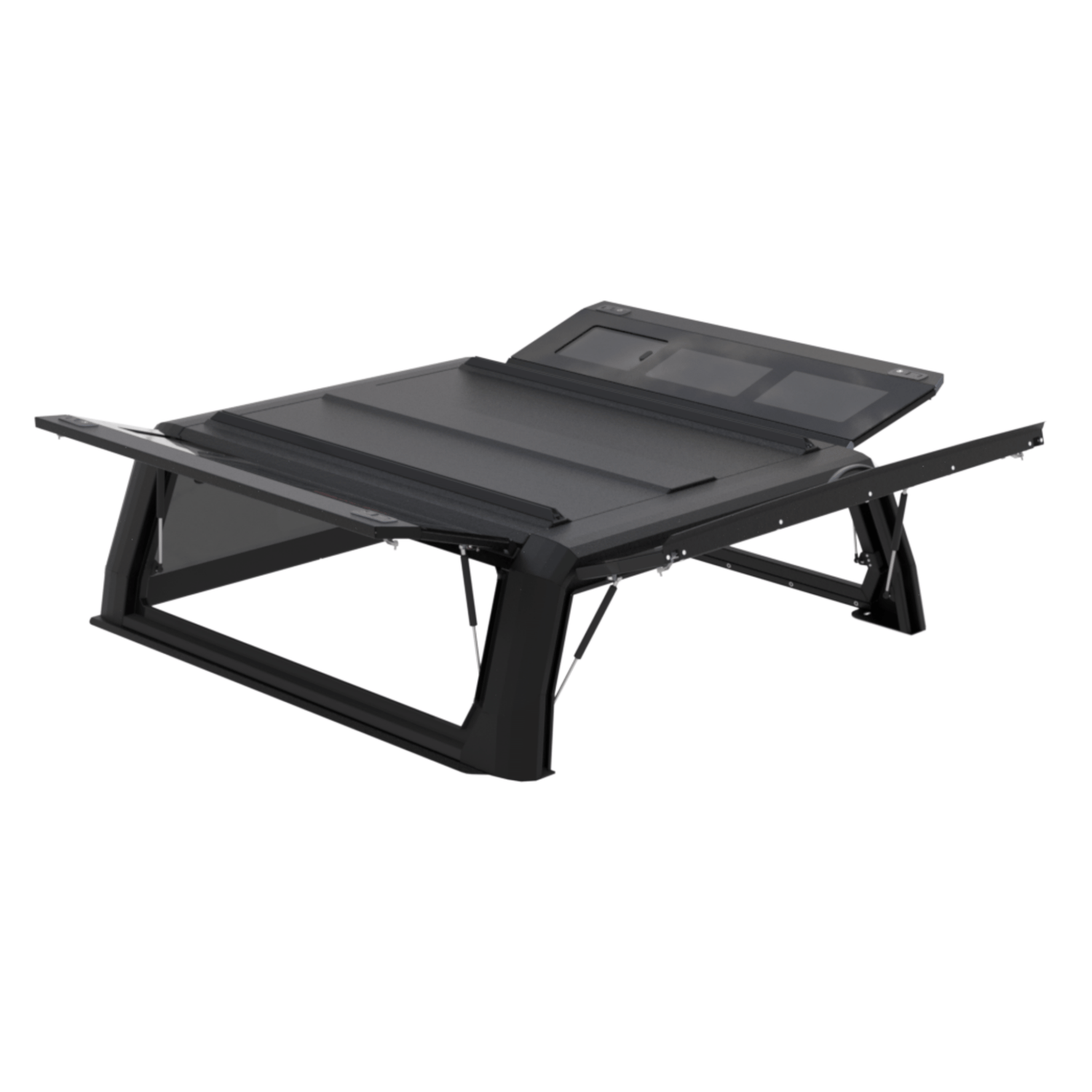

Side panels lift gullwing-style with bonded glass and sliding windows for ventilation. A front sliding cab window keeps airflow running, while the integrated positive-pressure vent stops dust from choking the inside. Outback heat or red dirt corrugations — it’s designed for both.

Locks That Won’t Give In

Dual dustproof keyed-alike locks sit on every door. They’re built to keep gear secure, whether it’s tools on site or recovery gear waiting for its moment.

A System Built to Grow

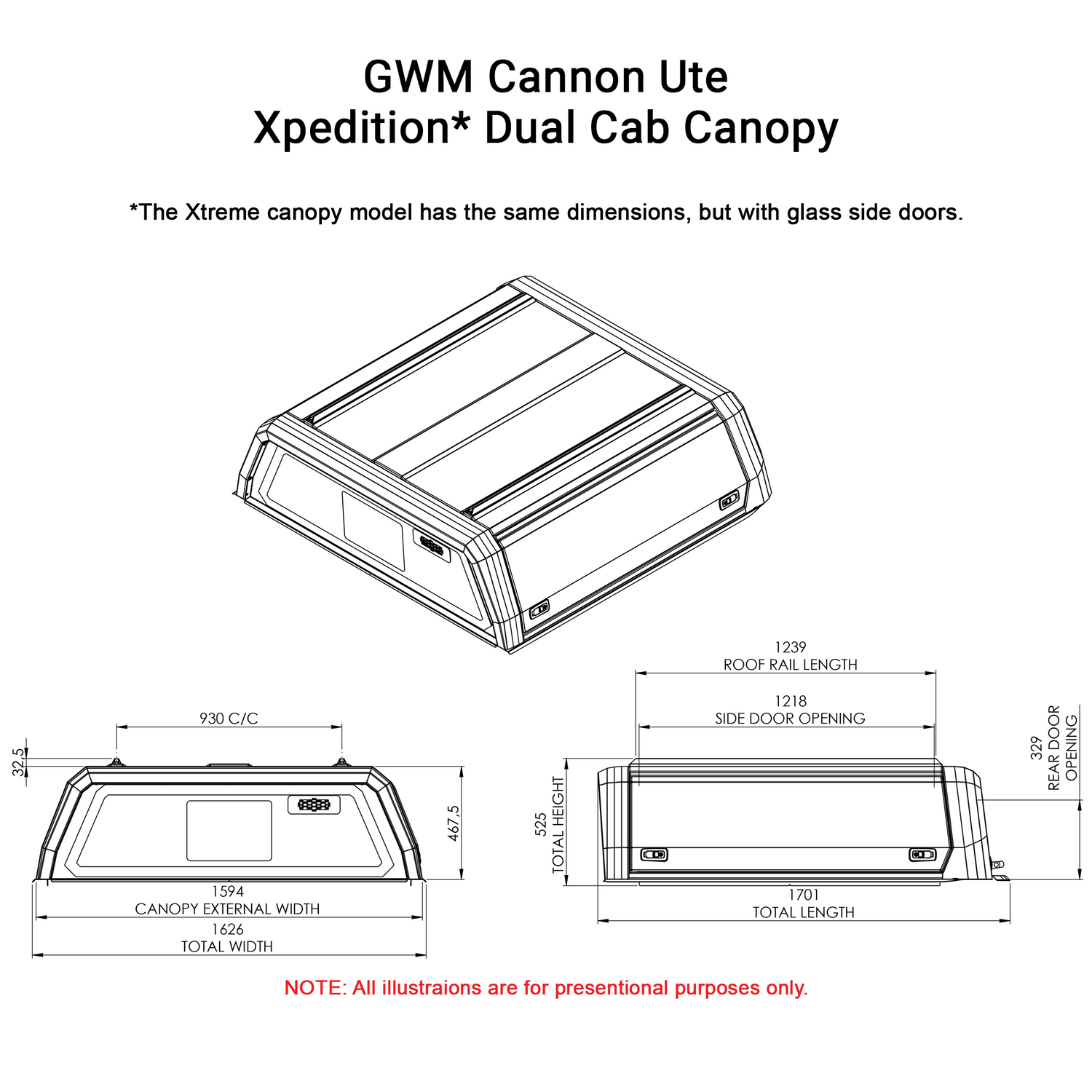

Every Xtreme canopy comes preloaded with 1239mm roof rails and internal nutserts/extrusions. No drilling, no cutting — just clean, bolt-on fitment. Add shelves, slides, tables, racks, or bags and build your rig your way.

Rugged Finish, Factory Fit

Designed for the GWM Cannon 2020–2025, it bolts straight into factory mounts. No drilling needed. Available in satin black or white ripple powder-coat, with all glass finished in black for a stealth look that stays sharp through the grind.

Spec Snapshot

• Aluminium gullwing side + rear doors
• Bonded glass panels with sliding windows
• Rear glass with integrated brake light (wiring required)
• Front sliding cab window
• 78kg aluminium build with reinforced gussets
• 250kg dynamic / 500kg static roof rating
• Full-length M8 roof channels + internal nutserts
• Positive-pressure vent for dust control
• Dual keyed-alike locks on every door
• Easy install using Cannon factory points
• 2-year recreational warranty (1 year mining use)
